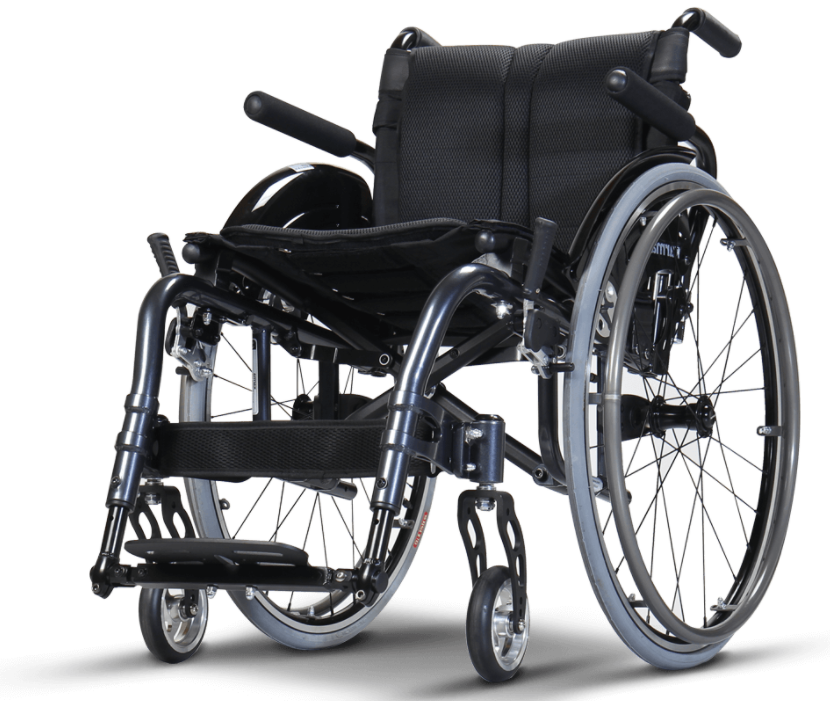

Karma Ergo Live Wheelchair

The Ergo Live is a self-propelled wheelchair, designed to provide comfort and superior handling. Its main feature is the adjustable rear axle position, which can optimize the stability, control, and manoeuvrability of the wheelchair. The Ergo Live is also available with several different options and is equipped with several adjustable features to meet the requirements of the user.

Sit Pretty and Comfortable

S-Ergo Seating System
The S-Ergo Seating is a patented seating system which; helps promote pressure relief and helps to stop the user sliding forward in the seat. This makes the wheelchair comfortable and helps maintain good posture.

Several Options and Adjustable Features
The seat is available in several different sizes. The rear axle position, seat height, backrest height and angle are all adjustable to fit the user’s requirements.

Easily Adjustable

Adjustable Rear Wheel Axle
By changing the position of the rear wheel axle, you change the center of gravity of the wheelchair and thus changing the performance of the wheelchair. Moving the rear wheels back will increase the base area, therefore making the chair most stable. Moving the rear wheels forwards will decrease the base area, allowing the caster to roll and swivel more easily. The ideal position is based on the individual’s weight, height, and strength. Configure the centre of gravity to meet your preference.

Angle and Height Adjustable Backrest
The angle of the backrest can be adjusted to three different angles. The tension adjustable backrest allow for tension adjustment to fit the contour of the user’s back.

The backrest is available in two sizes. The small option has a height adjustment range from 13” to 16”. The large option has a height adjustment range from 16” to 19”.

Quick-release Rear Wheels
Reduce the weight and size of the wheelchair with the quick-release rear wheels. No tools required. The wheels are easy to remove for storage and transportation.

Tension Adjustable Backrest for Better Back Support

Height Adjustable Seat
The castor fork is available in four different sizes. Depending on which castor fork, the height of the seat can be adjusted from 17.5″ to 20″.
